FIBCs are also known as Bulk Bags, Jumbo Bags, Big Bags, Ton Bags, Ton Sacks, Super Sacks, Container Bags Tote Bags or Sling Bags, and they can be custom manufactured in different dimensions with carrying capacities of up to 4,000 Lbs (2 Tons) or volumes of up to 100 Ft3 (2,830 Lts.) according to the specifications for the application.

FIBCs are widely used for transportation, packaging, handling or storage, and can hold a wide variety of wet and dry materials in the way of powder, granules, lumps or slurries like:
·   Chemicals
·   Cement
·   Aggregates
·   Minerals
·   Detergents
·   Foods
·   Sugar
·   Pharmaceuticals
·   Ground rubber
·   Sand
·   Gravel
·   Grain
·   Wheat
·   Salt
·   Nuts
·   Clay
·   Fertilizers
·   Refractory
·   Flour
·   Corn
·   Beans
·   Resin
·   Potatoes
·   Plastics
·   Cement
·   Rice
·   Coffee

FIBC Advantages

  • FIBCs are Strong and Durable
  • Cost Effective
  • Environmentally Friendly
  • Recyclable or Reusable
  • They Optimize Space
  • Can be designed to handle a wide variety of products

Construction & Design Features

  • U-Panel, 4-Panel, Baffle or Circular designs
  • Single or Multiple use
  • Fabric Density from 3 oz. to 8 oz.
  • Polypropylene Coated or Uncoated Fabric
  • UV Resistance and Stabilization
  • Food Grade Fabric (FDA Approved)
  • Flame Retardant Fabric
  • Breathable Fabric
  • Anti-Static: For use with flammable products or in explosive atmospheres
  • Groundable (conductive): For protection against electrostatic hazards
  • DOT and UN Certified: For transportation and handling of hazardous waste
  • Baffled: Nearly rectangular shaped, providing up to 30% savings in storage & transportation area

Options

Liners
- High or low density PE
- Aluminum Metalized
- Nylon / Co-extruded
- Carbon

Liner Styles
- Form fitted
- Tube
- Baffle

Identification TAGS
- Printing up to 4 sides
- Document pouch
- Bar code labels
- Warning labels
Liner Attachments
- Loose insertion
- Glued in
- Sewn in
- Tie in

Closure Styles
- Bonnet (pajama)
- Star (petal)
- Diaper

Special features
- Sift proofing (filler cord or felt)
- B-locks for quick release
- Remote discharge
- Velcro closures

Dewatering Bags

Also called Filtering Bags, bulk bags with open-woven-treads are utilized in the Water Treatment Industry and Sewer Control to remove liquids from mud, slurry, and other wet products. This ventilated fabrics permit air and vapors to escape.

Manufacturing

Our bags are manufactured from 100% recyclable coated (1.0 mil. polypropylene used for moisture control and product contaminant protection) or uncoated woven polypropylene materials. Fabrics are treated for ultraviolet resistance for limited outside storage and are engineered for the rated capacity and performance required. FIBCs are available with a variety of spouts, tops, bottoms, straps, liners and other special features.

Construction Features

Top Styles
Dome Top
Duffel Top
Top Spout
Open Top
Bottom Styles
Side/Bottom Spout
Full Bottom
Bottom Spout
Lifting Styles
8-Point Straps
Standard Lift Straps
Sleeves
Crane Loops

UN Certified FIBCs

Certified FIBCs have a design Safety Factor (SF) or Safe Working Load (SWL) of 6:1 (six times the maximum permissible net mass).

Testing & Certification

To insure proper product performance, our FIBCs are commonly tested utilizing different criteria that includes drop-impact, stacking, tearing, top lift, tipping, sifting, static, bridging, vibration and bottom lift.

Other Woven Polypropylene Products

Polypropylene Pet Food & Feed Bags
Polypropylene Grain Sacs

    Request Quote / Information    NOTE:   * Fields Are Required

Equipment & Engineering

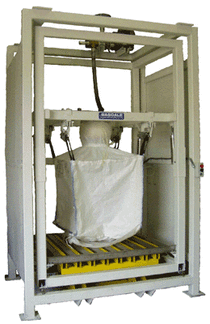

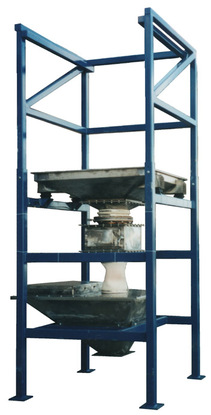

Besides Recommending, Designing and Developing FIBCs, our Packaging Bagging & Filling Equipment Team will Custom Engineer, Integrate and Manufacture the Equipment for the Filling or Discharging of FIBCs that will work with your products, in your plant, with your process, for you, and for your product end users.
Ask for our Equipment Brochures and Conceptual Layouts!
